Retention & Retention Plus

For taking the load off the sewer system and retaining rainwater

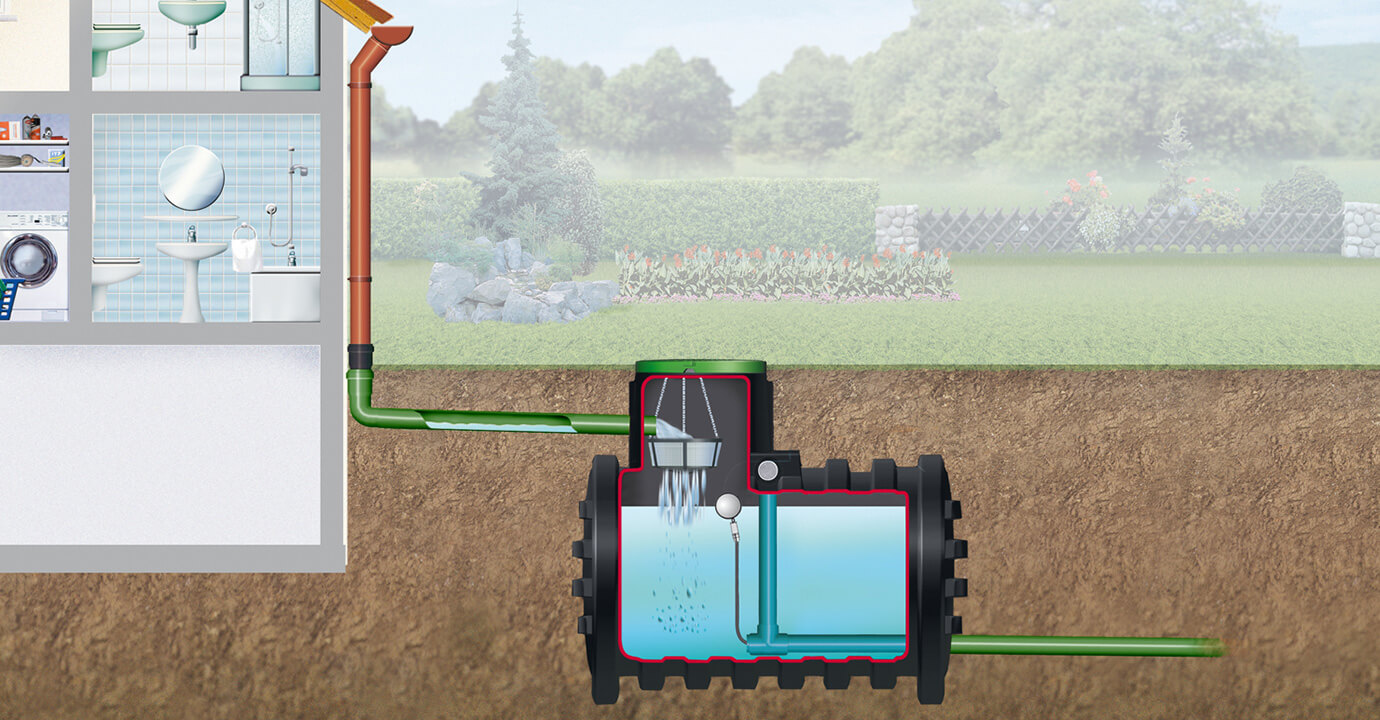

Mono retention tank

A 4 rain retention cistern holds back precipitation and releases it to the sewer system with a time delay. The canal is relieved in the event of precipitation. A so-called discharge throttle regulates the flow of water to the sewer with 0.05 to 2l /s. When it rains heavily, the water level in the cistern rises briefly and then sinks again after the rain. 4 rain retention cisterns also have an emergency overflow, that prevents the storage tank from overflowing.

  • For taking the load off the sewer system and retaining rainwater
  • When ordering, please specify the discharge value you wish (0.05–2.0 l/s)

Scope of delivery:



  • Mono retention tank
  • Underground tank Mono incl moulded tank dome
  • Four connecting holes incl prefitted DN 100 (4") sealings
  • Childproof tank cover
  • Integrated choke drain 0.05–2.0 l/s, DN 100 (4") connection prefitted in tank
Dimension drawing Connection retention retention plus Mono
PDF 111 kb
Instructions Mono tank system
PDF 409 kb
Dimension drawing Mono retention cistern 3000 l
PDF 87 kb
Dimension drawing Mono retention cistern 4000 l
PDF 120 kb
Dimension drawing Mono retention cistern 5000 l
PDF 93 kb
Dimension drawing Mono retention cistern 6800 l
PDF 93 kb

3.000 l

Order.-Nr. Length [mm] Width [mm] Height [mm] Weight [kg] Volume [l]
295065 2350 1400 1900 150 3000

4.000 l

Order.-Nr. Length [mm] Width [mm] Height [mm] Weight [kg] Volume [l]
295066 2420 1500 2050 175 4000

5.000 l

Order.-Nr. Length [mm] Width [mm] Height [mm] Weight [kg] Volume [l]
295067 2450 1830 2170 230 5000

6.800 l

Order.-Nr. Length [mm] Width [mm] Height [mm] Weight [kg] Volume [l]
295068 2450 2000 2400 290 6800

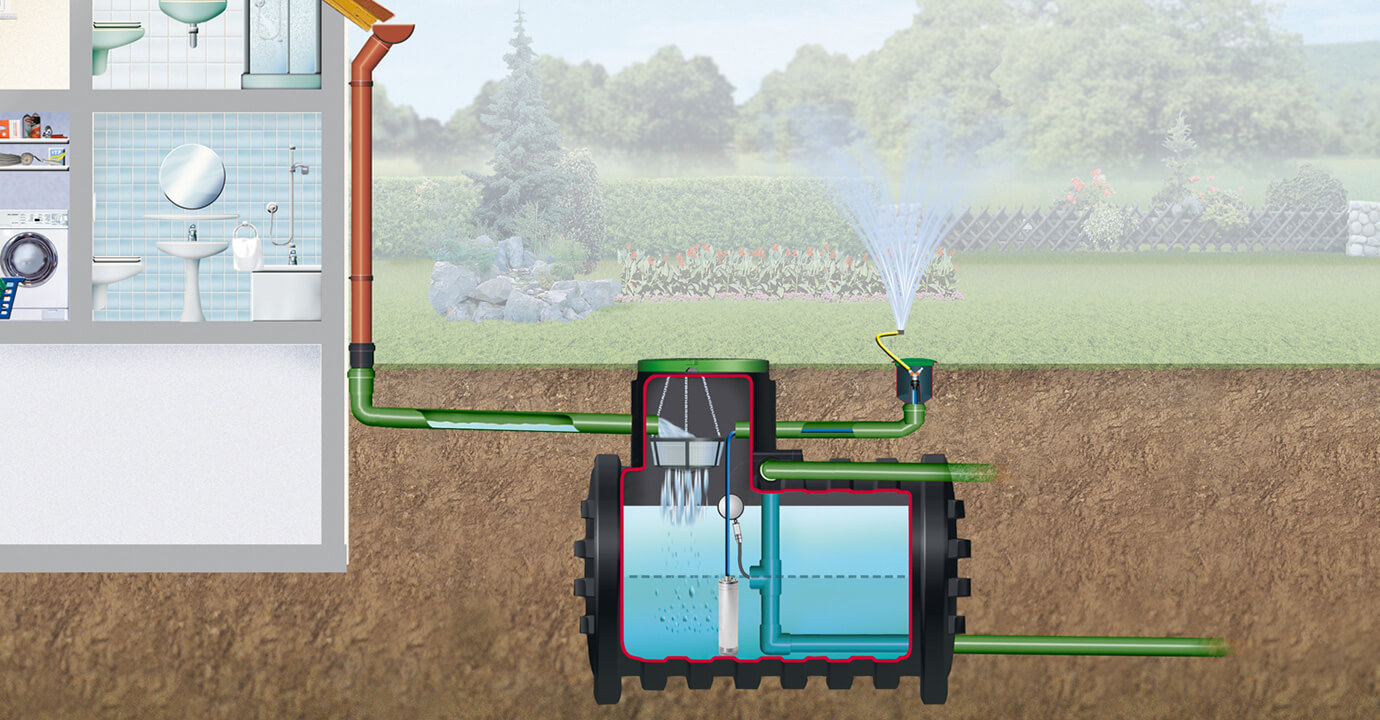

Mono retention tank Plus

You have to install a retetion cistern, but you don't want to take advantage of a rainwater harvesting system waive?

The 4 rain Retention cistern Plus ist the combination of rain retention and rainwater harvesting.

The tank is chosen to be slightly larger for this, depending on requirements. In required retention volume, part of the rainwater can also  be used.

  • For combined rainwater retention and rainwater harvesting
  • When ordering, please specify the discharge value you wish (0.05–2.0 l/s)

Scope of delivery:

  • Mono underground tank including molded tank dome
  • 4 connection bores including pre-assembled
  • Lip seals DN 100
  • Tank cover with child lock
  • Integrated discharge throttle 0.05 -2.0 l /s, connection DN 100 pre-assembled in the tank
Dimension drawing Connection retention retention plus Mono
PDF 111 kb
Instructions Mono tank system
PDF 409 kb
Dimension drawing Mono retention cistern plus 3000 l
PDF 94 kb
Dimension drawing Mono retention cistern plus 4000 l
PDF 123 kb
Dimension drawing Mono retention cistern plus 5000 l
PDF 89 kb
Dimension drawing Mono retention cistern plus 6800 l
PDF 95 kb

3.000 l

Order.-Nr. Length [mm] Width [mm] Height [mm] Weight [kg] Volume [l]
295070 2350 1400 1900 150 3000

4.000 l

Order.-Nr. Length [mm] Width [mm] Height [mm] Weight [kg] Volume [l]
295071 2420 1500 2050 175 4000

5.000 l

Order.-Nr. Length [mm] Width [mm] Height [mm] Weight [kg] Volume [l]
295072 2450 1830 2170 230 5000

6.800 l

Order.-Nr. Length [mm] Width [mm] Height [mm] Weight [kg] Volume [l]
295073 2450 2000 2400 290 6800
